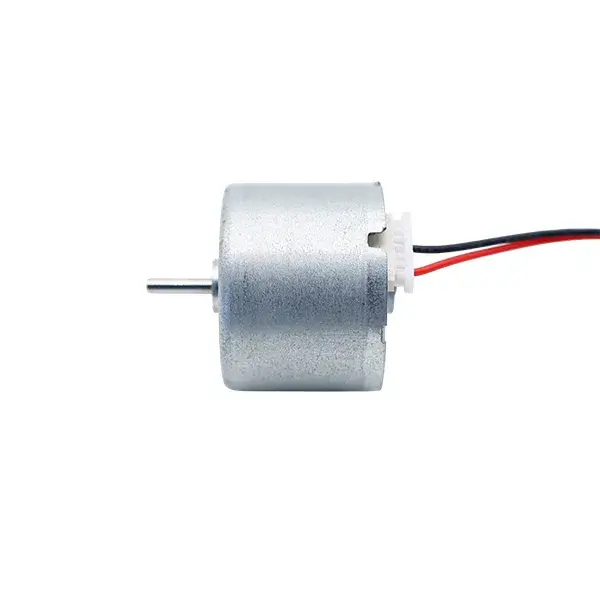

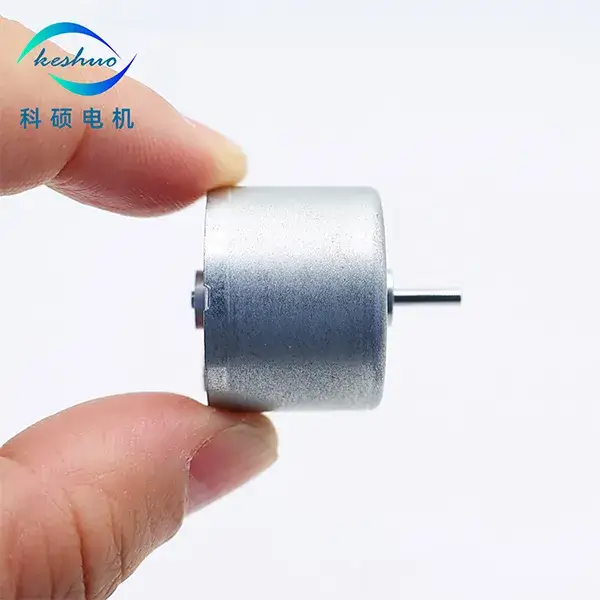

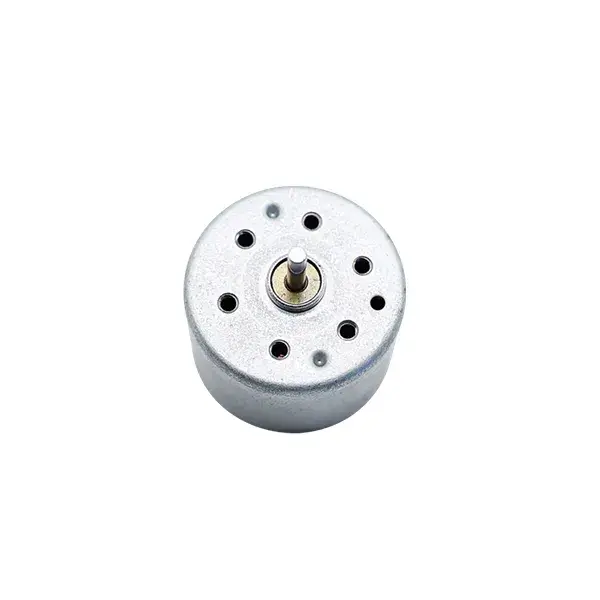

24mm 直径 6V 12V 24V 7500RPM 高转速直流无刷电机扭矩 171g.cm 型号 2418 适用于遥控车

额定电压：3V/6V/12V DC

电机尺寸：Φ15.4 x 26.9mm

空载转速：4000 ~ 20000 RPM

输出功率：0.65 ~ 1.38 W

减速箱转速：28 ~ 2700 RPM

应用：智能遥控车、玩具遥控车、玩具遥控船、耐腐蚀喷雾泵

立即咨询

24mm 直径 6V 12V 24V 7500RPM 高转速直流无刷电机扭矩 171g.cm 型号 2418 适用于遥控车

产品描述

⚡ 12V 24V 高速无刷直流电机性能数据表📊

主要特点：

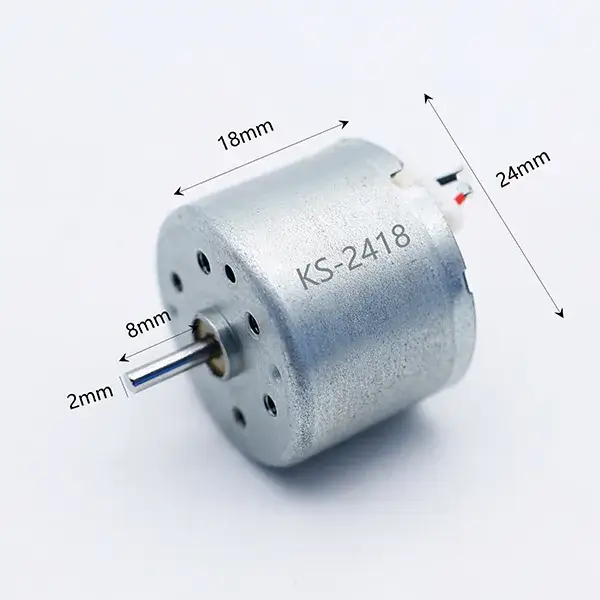

✔紧凑尺寸：精密设计，直径 24 毫米，可无缝集成到 RC 车中
✔多电压定制：支持 6V | 12V | 24V 直流电压
✔极速：高达 7,500 RPM，可实现竞争性赛车性能
✔高扭矩输出：171g.cm 的旋转力，可实现卓越的加速度
✔无刷设计：提高耐用性，无需维护

直流电机性能参数表 / DC Motor Specifications
型号	KS-BL2418-6	KS-BL2418-12	KS-BL2418-24
电机直径 Motor Diameter	24.4mm	24.4mm	24.4mm
电机长度 Motor Length	18.1mm	18.1mm	18.1mm
额定电压 Rated Voltage	6.0V DC	12.0V DC	24.0V DC
空载电流 No-Load Current	0.08 A	0.05 A	0.03 A
空载转速 No-Load Speed	5600 RPM	6000 RPM	7500 RPM
负载转速 Load Speed	4200 RPM	4787 RPM	5966 RPM
负载扭矩 Load Torque	18.6 g·cm	27.4 g·cm	35.9 g·cm
负载电流 Load Current	0.23 A	0.17 A	0.12 A
负载功率 Load Power	0.6 W	1.07 W	1.6 W
堵转扭矩 Stall Torque	72.0 g·cm	128.0 g·cm	171 g·cm
堵转电流 Stall Current	0.66 A	0.62 A	0.46 A
噪音 Noise	≤ 45dB	≤ 45dB	≤ 45dB
旋转方向 Rotation Direction	CCW	CCW	CCW
认证 Certification	CE, RoHS	CE, RoHS	CE, RoHS

*性能规格反映的是实验室测试值；实际结果可能有所不同。实际应用需要进行工程验证。

💡 24mm BLDC 电机的应用

智能遥控车
• 玩具遥控车
• 玩具遥控船
智能农业
• 耐腐蚀喷雾泵
• 土壤压实反馈系统

关键词：

小型无刷电机、BLDC 无刷电机、12V 无刷电机、24V 直流无刷电机、6V 直流电机、2418 电机、6000 rpm BLDC 电机、无刷电机效率、RC 无刷电机、RC 无刷电机尺寸、出售无刷直流电机、内转子无刷电机、永磁无刷直流电机、高速 BLDC

开发样品、工程与制造：

如需生产报价或定制和集成服务咨询，请联系我们的销售工程师。

🔊 FAQ – 常见问题

问：如果我想要定制电机，我应该提供什么信息？

答：请提供电机的基本规格，包括尺寸、规格、电压、转速和扭矩。如果可能的话，请发送您的应用原型图纸。

问：你们提供哪些类型的电机？

答：我们提供各种各样的电机，直径 6mm–86mm 直流微电机和齿轮电机、电动机、汽车直流电机、步进电机、有刷直流电机、无刷直流电机、正齿轮电机、振动电机等。

问：你们的微型直流电机主要应用于哪些领域？

答：我们的微型直流电机广泛应用于各个行业和应用，例如：

✔️家用电器——用于智能家居设备和家庭自动化。✔️
办公设备——为打印机、扫描仪和复印机等办公工具供电。✔️医疗
保健应用——用于输液泵和诊断设备等医疗设备。✔️
环卫行业——用于自动清洁设备和设备。✔️
高端玩具——用于高级玩具和小工具的精确移动。✔️
银行系统——用于自动取款机和其他银行自动化设备。✔️
电子和电动工具——为钻头、螺丝刀和其他小型机械等工具供电。✔️
自动化行业——用于机器人系统、自动装配线和工业机器。✔️
银行设备——用于读卡器、自动取款机和类似设备。✔️
支付系统——用于销售点设备和自动售货机的精确控制。✔️
自动售货机——为产品分配和硬币操作提供动力的机制。✔️
电动门锁——用于安全应用的智能锁系统。

认证：

在产品质量管理方面，公司已通过并实施汽车行业质量管理体系认证（✅ IATF 16949:2016 ）、医疗器械质量管理体系认证（✅ ISO13485:2016 ）、ISO9001质量管理体系认证（✅ ISO9001:2015 ）等管理体系认证。

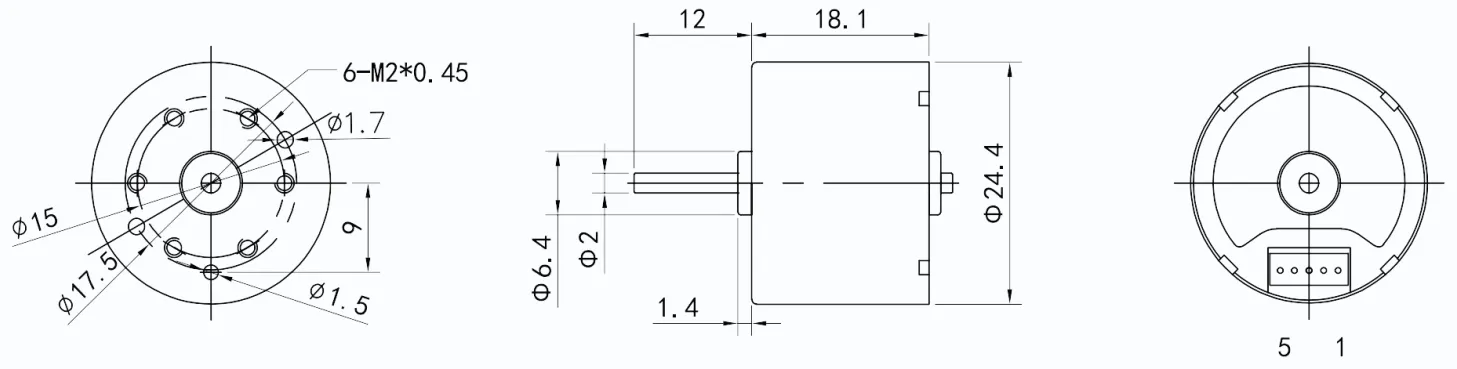

外观尺寸图
